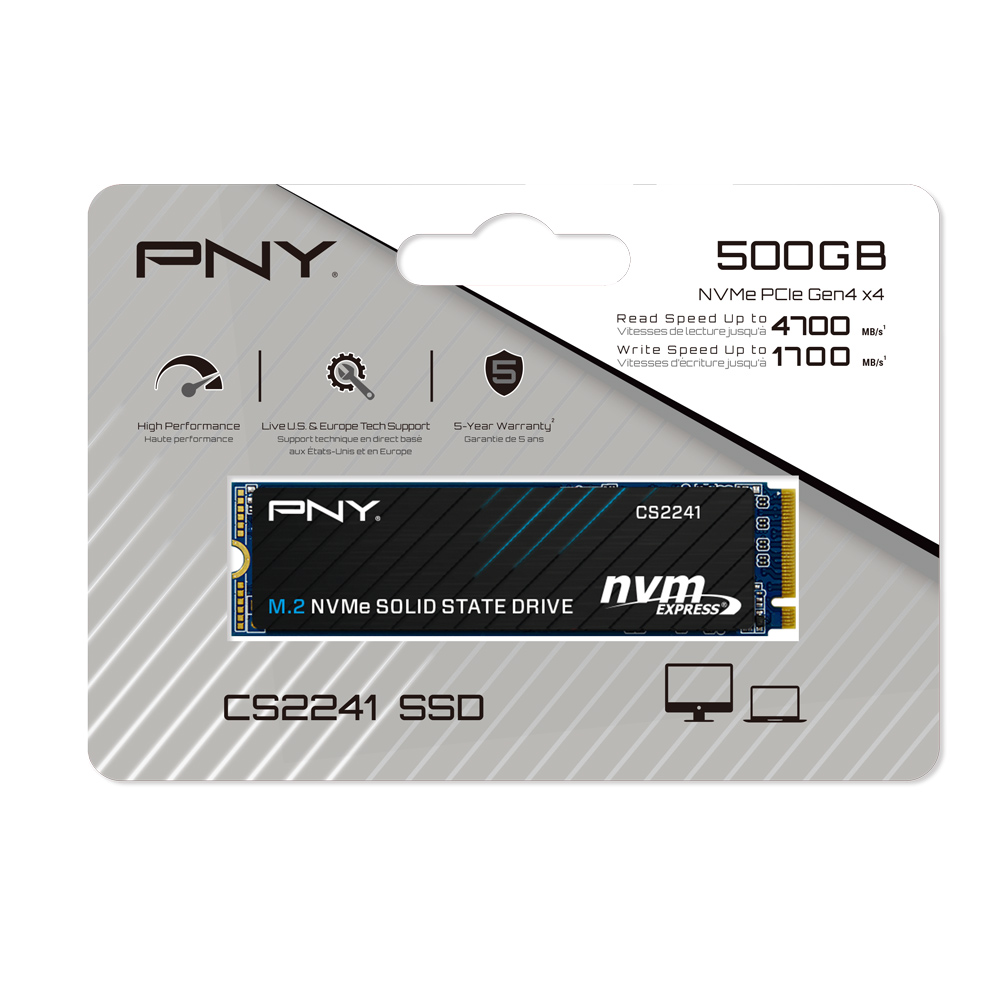

SSD PNY CS2241 M.2 2280 NVMe Gen 4×4 NVMe 500GB

Specification

• Usable Capacities
  500GB/ 1TB/ 2TB/ 4TB
• NAND Components
  3D NAND Flash Memory
• Interface
  PCIe Gen4x 4
• Form Factor
  M.2 2280
• Package Dimensions (L×W×H)
  123 x 85 x 4.3 mm
• Product Dimensions (L×W×H)
  22 x 80 x 4 mm (Max)
• Weight
  6.6g
• Max Sequential Read*
  500GB: Up to 4,700MB/s
• Max Sequential Write*
  500GB: Up to 1,700MB/s
• TBW
  500G: 160, 1TB: 320, 2TB: 640, 4TB: 900
• PCIe Link Power Management
  PS0/ PS1/ PS2/ PS3/ PS4, APST, ASPM, L1.2
• Operating Temperature
  0°C to 70°C
• Storage Temperature
  -40°C to 85°C
• Certifications
  BSMI, CE, FCC, KCC, REACH, RoHS, VCCI
• MTBF
  1,500,000 Hours
• Error Correction Code
  LDPC (Low Density Parity Check) ECC Algorithm
• Product Health Monitoring
  Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
• Full End-to-End Data path protection
  Supported
• Performance Optimization
  TRIM (requires OS support)
• Warranty
  5-Year Limited Warranty or TBW*
