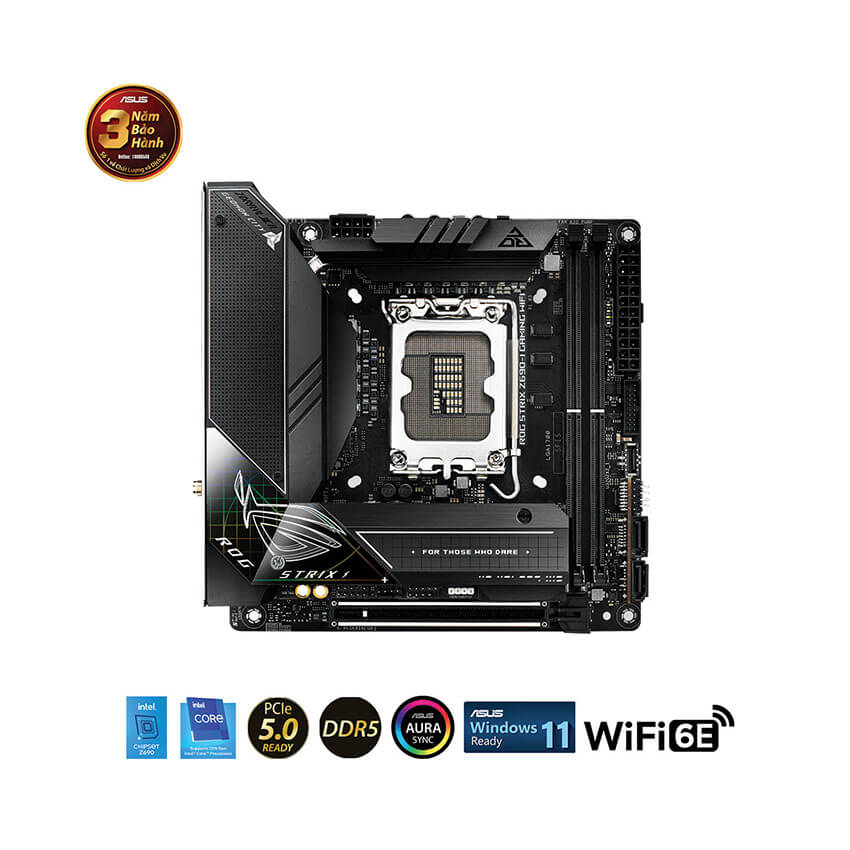

Mainboard ASUS ROG STRIX Z690-I GAMING WIFI (DDR5)
- Chipset: Intel Z690
- Socket: LGA 1700
- Số khe RAM: 4 (DDR5)
- Kích thước: ATX
- Tích hợp sẵn Wifi & Bluetooth
| CPU |
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
|
| Chipset | Intel® Z690 Chipset |
| Memory | |
| Graphics | 1 x HDMI 2.1 |
| Expansion Slots | Intel® 12th Gen Processors*
1 x PCIe 5.0 x16 slot(s)*** |
| Storage |
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 4 x SATA
Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports*** |
| Ethernet |
1 x Intel® 2.5Gb Ethernet
|
| Wireless & Bluetooth |
Intel® Wi-Fi 6E
“Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 |
| USB |
Rear USB (Total 9 ports) 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) 3 x USB 3.2 Gen 1 port(s) (3 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 2×2 connector(s) (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports |
| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback” Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – LED-illuminated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

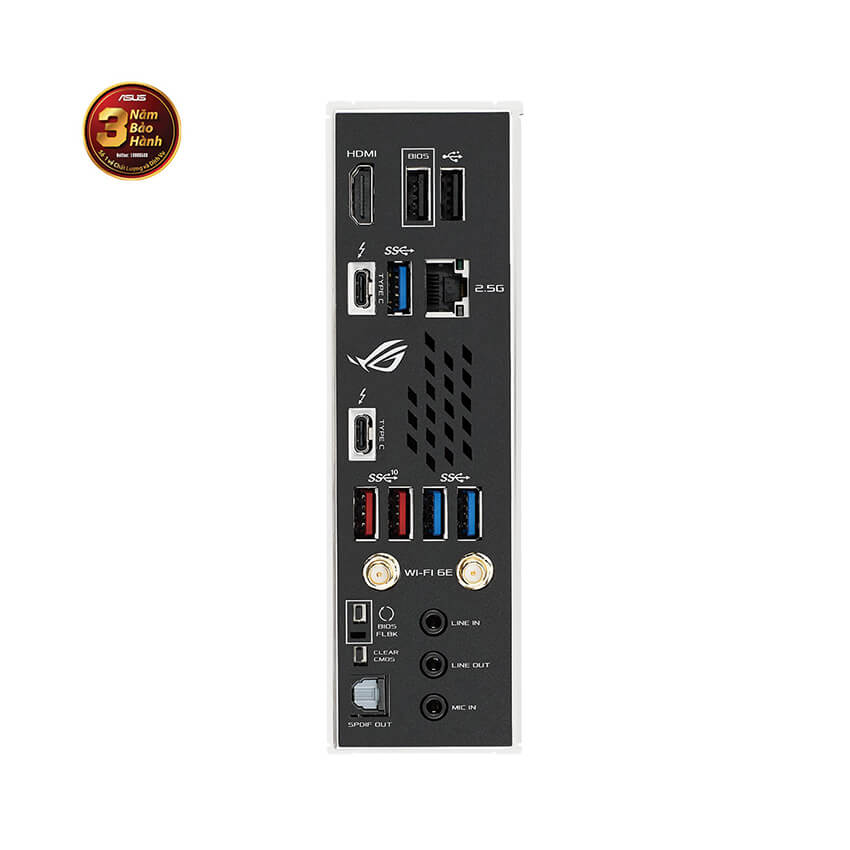

| Back Panel I/O Ports |
2 x Thunderbolt™ 4 USB Type-C® port(s) 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) 3 x USB 3.2 Gen 1 port(s) (3 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Intrernal I/O Connectors | Fan and Cooling related
1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x 2 pin POWER_BTN header 2 x USB Type-C® connectors to Install ROG Strix Front panel SATA card* * Install ROG Strix Front panel SATA card to support 4 x SATA 6Gb/s ports, 1 x Addressable Gen 2 header, 1 x Front Panel header and 1 x Speaker header. |
| Special Features | Extreme Engine Digi+
– 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – AURA RGB header(s) – Addressable Gen 2 header(s)
|
| Software Features | ROG Exclusive Software
– GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound – Anti-virus software ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation AI Suite 3 – Easy Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |

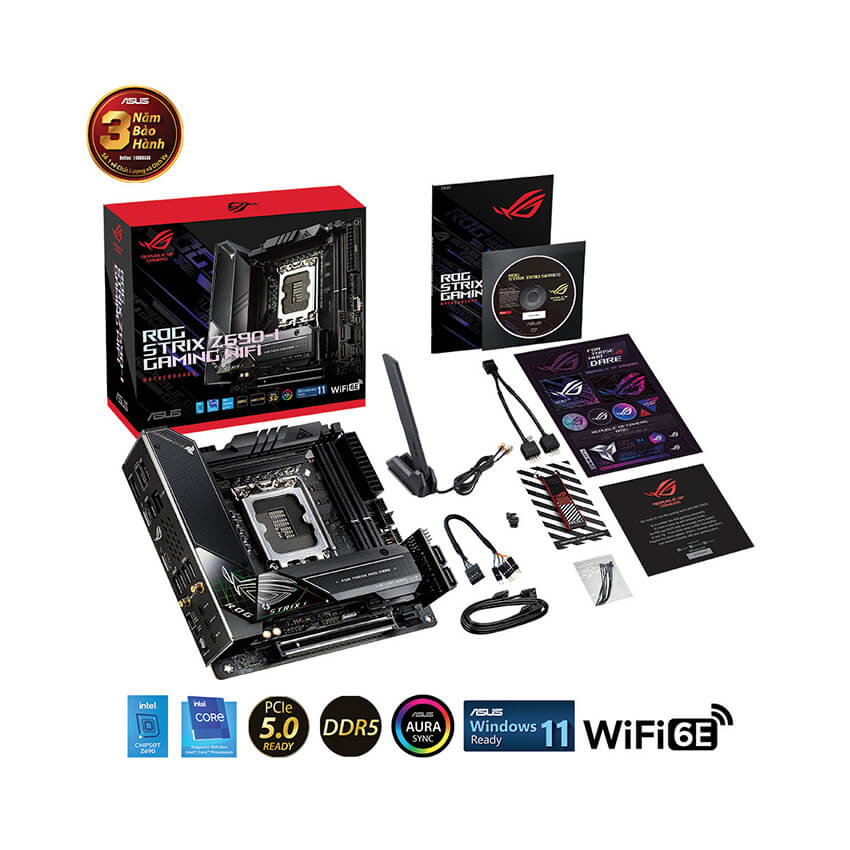

| Accessories | Cables
1 x ROG USB2.0 splitter cable 1 x Panel Cable 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package(s) 1 x ROG key chain 1 x ROG logo plate stickers 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User guide |
| Form Factor |
Mini ITX
17cm x 17cm
|
-
SKU: 120393Mainboard ASUS PRIME B650M-K DDR5 AM5
4.680.000 đ3.390.000 đ -28%Giá bán 3.390.000 đBảo hành 36 thángThông số sản phẩm-
Form: Micro-ATX
-
Socket: AM5 (Ryzen 7000)
-
RAM: 2 khe DDR5, tối đa 128GB
-
M.2: 2 khe, trong đó 1 khe PCIe 5.0
-
LAN: Realtek 2.5Gb
-
USB: Type-C Gen 1, USB 3.2 Gen 2
-
Video output: HDMI, VGA
-
RGB: Aura Sync, hỗ trợ Gen 2 RGB
-
-
SKU: 079878
ASUS PRIME Z790-P DDR5
7.690.000 đ6.150.000 đ -20%Giá bán 6.150.000 đBảo hành 36 thángThông số sản phẩmForm Factor ATX Power Stages 14 + 1 power stages (50A) Memory 4 x DIMM, Max. 128GB, DDR5 PCIE Slot PCIe 5.0 ready Storage 3 x PCIe 4.0 M.2 USB 1 x USB 3.2 Gen 2x2 1 x Thunderbolt™ (USB4®) Header WiFi & LAN 1 x 2.5 Gb Ethernet ASUS Technology AEMP II, AI Cooling II -
SKU: 101262
Mainboard ASUS ROG MAXIMUS Z890 HERO
25.407.900 đ22.890.000 đ -10%Giá bán 22.890.000 đBảo hành 36 thángThông số sản phẩm- Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- Intel® Z890 Chipset
- 4 x DIMM slots, max. 192GB, DDR5,support up to 8800+MT/s (OC)
- Hỗ trợ 6 x M.2 slots and 4 x SATA 6Gb/s ports
- Kiểu Main:ATX
- Wi-Fi 7 (802.11be)
-
SKU: 089294
Main ASUS ProArt B760-CREATOR D4
6.870.900 đ5.790.000 đ -16%Giá bán 5.790.000 đBảo hành 36 thángThông số sản phẩmThông tin chung:- Nhà sản xuất: ASUS
- Bảo hành: 36 tháng
-
SKU: 119293
Mainboard Asus Prime B860M-K-CSM (Intel B860/ Socket 1851/ DDR5/ 2.5 Gigabit LAN)
5.250.000 đ4.250.000 đ -19%Giá bán 4.250.000 đBảo hành 36 thángThông số sản phẩm- Chipset: Intel B860
- Socket: Intel LGA 1851
- Hỗ trợ CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA1851
- Kích thước Main: M-ATX
- Khe cắm RAM: 2 khe ram
- Loại RAM: DDR5
-
SKU: 062815
Mainboard ASUS PRIME B450M-A
2.300.000 đ1.900.000 đ -17%Giá bán 1.900.000 đBảo hành 36 thángThông số sản phẩm- Chuẩn mainboard: Micro-ATX
- Socket: AM4 , Chipset: B450Hỗ trợ
- RAM: DDR4 , tối đa 64GB
- Cổng cắm lưu trữ: 1 x M.2 SATA; 1 x M.2 SATA/NVMe; 6 x SATA 3 6Gb/s
- Cổng xuất hình: 1 x DVI-D; 1 x HDMI; 1 x VGA/D-sub
